Graph queries that see your whole table.

Q: What graph algorithms ship with Kinetica out of the box?

Three endpoint families, all callable from standard SQL: Solve ( shortest_path , multiple_routing /TSP, backhaul_routing , page_rank , probability_rank , centrality , closeness , stats_all , inverse_shortest_path ), Match ( match_supply_demand , map_matching , charging_stations , pickup_dropoff , loops , similarity , clusters via Louvain/RSB, pattern , batch_solves — four of which are patented), and Query (label-aware hop-based traversals with OLAP restrictions).

Q: How big a graph can Kinetica hold, and how fast can it traverse it?

On a 500K-edge Seattle road network, a multi-source SHORTEST_PATH over five lon/lat pairs returns in roughly 250 ms. On a single node with 1 TB RAM + 0.5 TB ZRAM, Kinetica has held a 4.3 B-edge / 2.8 B-vertex graph and run 3-hop source-to-many queries in 1.2–1.8 seconds. Build time for that graph from cold was ~4.5 hours.

Q: When should I use replicated vs partitioned distribution?

Use replicated when the graph fits in single-node memory — every solver runs locally with no inter-server coordination, and reads scale with node count. Use partitioned when the graph exceeds single-node memory and the workload is dominated by partition-local solves; interface nodes are duplicated across partitions to bridge cross-partition traversals. In our 4.3 B-edge POC, the same query ran 1.8 sec on one node with the right memory budget and ~8 sec on seven partitioned nodes — choose the mode that fits the workload, not the demo.

GraphDistributedSQLHybrid

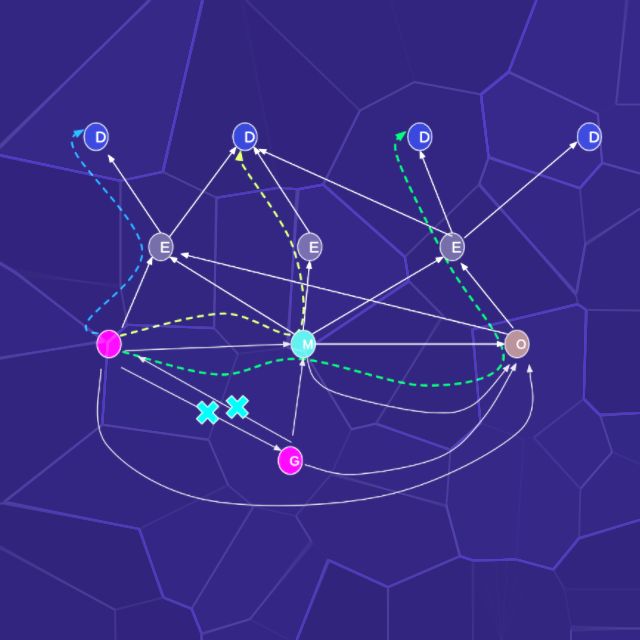

One grammar for geospatial, social, and property graphs. Topology stored in fixed memory. Traversals restricted by the same SQL you write on the rest of your data — no copy, no sync, no second engine.

Start FreeSolve · Match · Query — all in standard SQL

The Category

Stop choosing between graph speed and analytical breadth — keep the graph beside your data, not on a copy.

Neo4j · TigerGraph

Built for traversal — but it lives apart from your data.

Fastest at pure-graph workloads when the graph is static. The cost: graph topology is a copy, attributes are duplicated or streamed in via hooks, and joins back to relational data live in application code or batch jobs.

High traversal performance on static graphs

Explicit duplication; attributes must be synced

No native OLAP — analytics happen elsewhere

The Query Surface

Cypher you already know. SQL you already write. One planner.

Cypher inside · SQL outside · one query plan

Cypher · traversalSQL · aggregate

Cypher · GQL

Multi-hop patterns, variable-length paths, label filters.

GRAPH_TABLE()

Lifts Cypher results into the relational world for GROUP BY and joins.

One plan

Graph traversal and OLAP aggregation share the same optimizer.

SQL · Cypheraml_top_exposure.sql

-- Top-exposure wires from one bank.
-- Cypher does the traversal,
-- SQL does the aggregation —
-- in a single statement.

SELECT wire, risk,
       ROUND(SUM(amount), 0) AS total
FROM GRAPH_TABLE (
  GRAPH expero.banking_graph
  MATCH (a:bank WHERE
            a.bank_name = 'Harvey Group')
        -[:performed]->
        (b:wire_message WHERE
            b.risk_score > 20)
        -[:is_for_transaction]->
        (c:banking_transaction)
  RETURN b.NODE AS wire,
         b.risk_score AS risk,
         c.amount AS amount
)
GROUP BY wire, risk
ORDER BY total DESC
LIMIT 10;

↑ Your Neo4j Cypher ports over. Your SQL tools keep working.

The Mechanism

A graph topology that doesn't move when your graph does.

CSR vs Double-Link Structure · Edge insert/delete

CSR · contiguousDLS · linked

6×

Memory per edge

Fixed-size cells. Storage cost is exactly 6 × edge count — predictable from day one to day n.

O(1)

Edge upsert cost

Insert and delete are pointer operations. The graph holds its shape under continuous updates.

10 GB

Billion-node ceiling

Where conventional graph structures need 100 M GB to hold a fully-connected billion-node graph, DLS needs 10 GB. Real graphs are sparser — the same compression ratio holds.

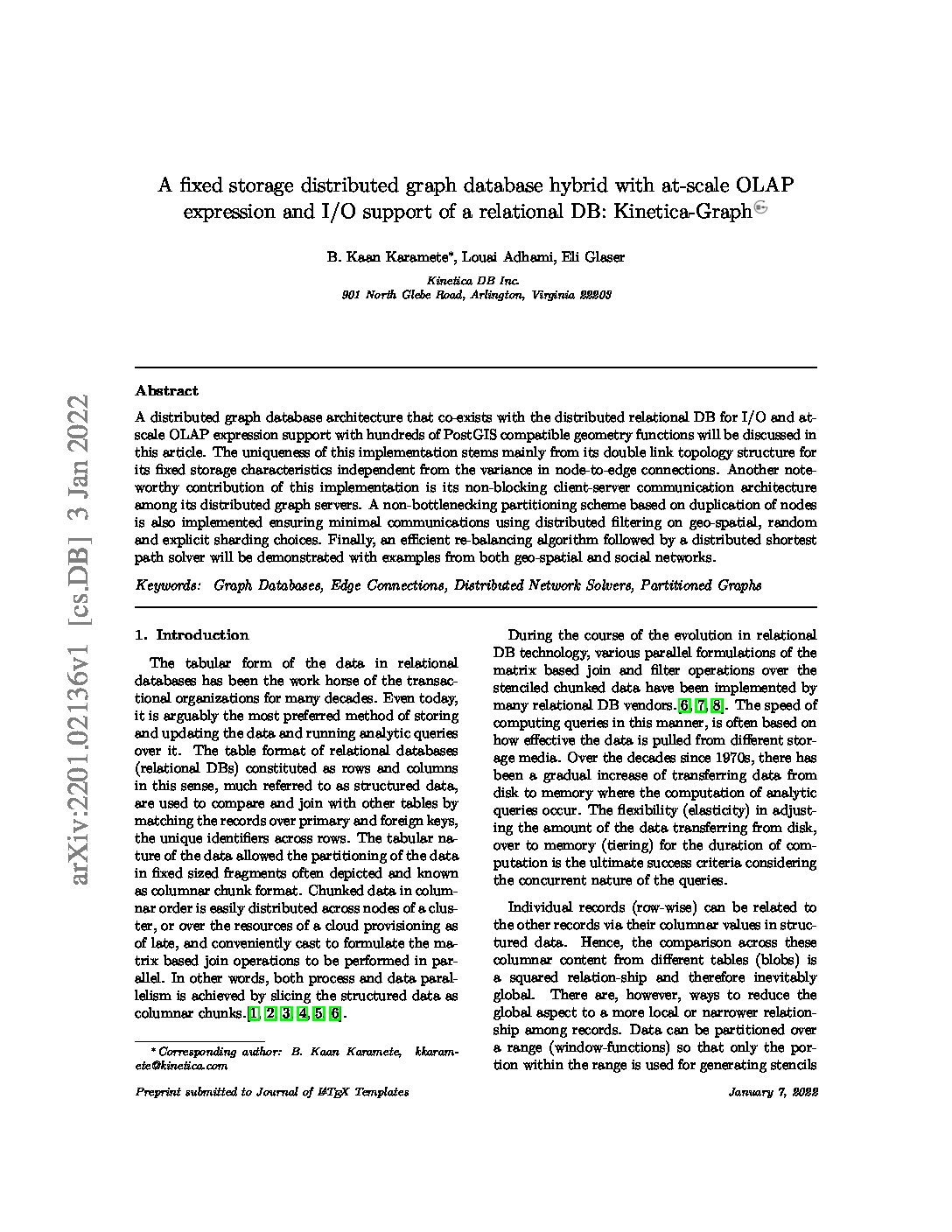

Peer-reviewed

The DLS architecture, distributed graph servers, and the at-scale OLAP integration are documented in "A Fixed-Storage Distributed Graph Database Hybrid" — published research, available on arXiv.

Read the paper →

The Live Graph

O(1) upserts mean your graph never falls behind your data.

Source tables → graph topology · O(1) per change

insertupdatedelete

Who this matters for — AML wire-tracing · real-time fraud rings · fleet & IoT telemetry · supply-chain visibility · social-network freshness.

SQLlive_fraud_graph.sql

-- The graph follows the tables.
-- The tables follow the stream.
-- No rebuild step in between.

CREATE OR REPLACE GRAPH fraud_live (
  NODES => INPUT_TABLES(
    SELECT * FROM accounts
  ),
  EDGES => INPUT_TABLES(
    SELECT * FROM wire_transfers
  ),
  OPTIONS => KV_PAIRS(
    add_table_monitor = 'true',
    save_persist      = 'true'
  )
);

-- accounts and wire_transfers
-- can now be streamed into.
-- The graph stays current.

↑ One option flag. The graph follows your CDC stream.

The Numbers

500K edges in 250 ms. 4.3 billion edges, queryable — production results on real hardware, dated and attributed.

Shortest path · five locations

Seattle road network

500K edges · multi-source/multi-target

~250ms

graph500K edges

queries5 lon/lat pairs

solverSHORTEST_PATH + MULTIPLE_ROUTING

weightsdistance ÷ speed

Multi-billion edge graph · 3-hop traversal

Single node, huge memory

4.3 B edges · 2.8 B vertices · source-to-many

1.2 – 1.8sec

memory1 TB RAM + 0.5 TB ZRAM

compression4× on ZRAM tier

build time~4.5 hours

query type3-hop, 1-to-many

Partition rebalance · published research

Balanced vs random partitioning

Distributed graph solve, same workload

100×faster

topologyinterface-node duplicated

algorithmpartition rebalancing

workloadcross-partition shortest path

sourcearXiv:2201.02136

Storage cost · what the graph holds at scale

~6%

Storage variance with arbitrary edge-degree skew

Memory degradation across continuous upserts

4.5h

To build a 4.3 B edge graph from cold

Sources: Seattle benchmark — graph engine production tests, 7.1.10.2 / 7.2.0.7 builds, Q3 2024.

4.3 B edge graph — POC build, single-node 1 TB RAM + 0.5 TB ZRAM, x4 ZRAM compression, source-to-many 3-hop query, 2024.

100× partition rebalance speedup — published in arXiv:2201.02136 (2022). Comprehensive multi-platform benchmark refresh in progress.

The Toolkit

Solve. Match. Query. Every operator your graph workload needs.

Solve/solve/graph

Generic graph solvers — paths, ranks, centrality.

Network-agnostic algorithms that operate on any graph: shortest paths, travelling salesman, backhaul routing, PageRank, Markov chain probability, centrality measures, all-paths enumeration.

EXECUTE FUNCTION SOLVE_GRAPH(
  GRAPH       => 'seattle_roads',
  SOLVER_TYPE => 'SHORTEST_PATH',
  SOURCE_NODES => INPUT_TABLES(...)
);

shortest_path · multiple_routing (TSP) · backhaul_routing · page_rank · probability_rank · centrality · closeness · stats_all · inverse_shortest_path

Match/match/graph

Purpose-built matchers for real-world problems.

Higher-order solvers built on combinations of the generic primitives — for routing, fraud, scheduling, and supply-chain optimization. Two patented algorithms anchor this family.

EXECUTE FUNCTION MATCH_GRAPH(
  GRAPH        => 'logistics',
  SOLVE_METHOD => 'match_supply_demand',
  OPTIONS      => KV_PAIRS(...)
);

match_supply_demand (Patent) · map_matching HMM (Patent) · charging_stations · pickup_dropoff · loops (fraud rings) · similarity (Jaccard) · clusters (Louvain · RSB) · pattern · batch_solves

Query/query/graph

Label-aware traversals with OLAP filters.

Hop-based pattern queries with node and edge labels. Restrictions can reference any column on any table — including columns that aren't even part of the graph.

GRAPH social
MATCH(a:PERSON)-[ab:Friend]->{3}(b:CHESS)
RETURN a.node as source, b.node as target

adjacency_solver · pattern_matching · hop-based query · label restrictions · target-node-label filtering · OLAP column expressions inside traversal

The Patents

Four patented solvers that run in the database — the work your competitors send out to OR-Tools, Gurobi, or a routing service.

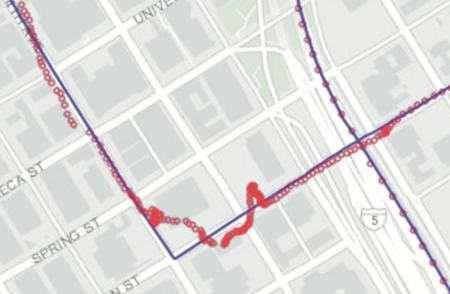

Map matching · HMMPatent

Snap GPS to road, at scale.

Adaptive-kernel Markov chain with range-tree closest-edge search. Turns raw GPS samples into validated road-network paths over any OSM-derived graph.

Fleet · telematics · ride-hailing · AIS vessel tracking · last-mile delivery

Supply-demand · MSDOPatent

Mixed-integer optimization, in the database.

Multi-step, multi-modal, spec-matching dispatch via MILP. Air → sea → land with partial loading and capability constraints — no external OR solver.

Logistics · defense · CPG distribution · disaster relief · fleet dispatch

Eulerian loopsPatent

Find rings, not just paths.

Closed-cycle enumeration with unlimited hop counts. Surfaces money-movement loops where conventional path solvers only return open trails.

AML structuring · layering detection · round-trip transactions · circuit analysis

EV charging routingPatent

Range-aware routing, thousands of stations.

Optimal path across an EV charging network with range constraints and penalty-tuned stops. Single solver across a continent of stations.

EV navigation · fleet electrification · charging-network planning · range optimization

The Hybrid

Restrict graph traversals with the same SQL you'd write on the table.

Graph traversal · OLAP filter applied during walk

visitedfilter passfiltered out

SQLquery_graph_with_olap_filter.sql

-- Three-hop friend traversal —
-- restricted by a column on a table
-- that isn't even in the graph.

EXECUTE FUNCTION QUERY_GRAPH(
  GRAPH   => 'social',
  QUERIES => INPUT_TABLES(
    (SELECT 'Jane' AS NODE_NAME),
    (SELECT 'CHESS' AS TARGET_NODE_LABEL),
    (SELECT 2 AS HOP_ID,
            'friend' AS HOP_EDGE_LABEL)
  ),
  RESTRICTIONS => INPUT_TABLES(
    -- this is just SQL.
    -- on a table not in the graph.
    SELECT
      name AS NODE_NAME,
      IF(age &lt; 40 AND
         status = 'active', 0, 1)
        AS ONOFFCOMPARED
    FROM Person
  ),
  RINGS => 3
);

↑ Person table. Person.age. Person.status. None of which exist inside the graph.

AND BECAUSE EVERYTHING SHARES THE ENGINE

Vector embeddings can become graph edges.

Because vector, graph, and relational all live in the same engine, a column of embeddings is a valid edge weight. Compute L2 distance between every pair of rows, construct edges where the distance is small enough — and now you have a similarity graph you can traverse with labels and OLAP filters in the same query.

Vector → Graph · pipeline

relationalvectorgraph

One CREATE GRAPH statement: vector column → L2 distance → graph edges → traversable with labels and OLAP filters in the same query.

SQLvector_to_graph.sql

-- vector(6) of movie preferences
CREATE OR REPLACE TABLE relations(
  name TEXT,
  movie_likes VECTOR(6)
);

-- edges from L2 distance
CREATE OR REPLACE GRAPH netflix (
  EDGES => INPUT_TABLES(
    SELECT
      t1.name AS NODE1_NAME,
      t2.name AS NODE2_NAME,
      'WATCHED' AS LABEL,
      L2_DISTANCE(
        t1.movie_likes,
        t2.movie_likes
      ) AS WEIGHT_VALUESPECIFIED
    FROM relations t1
    CROSS JOIN relations t2
    WHERE L2_DISTANCE(...) &lt; 0.6
  )
);

↑ Vector + graph + relational. Same engine. Same query.

In Production

Three workloads, three architectures, one engine — each running today in a single SQL statement, no sidecar solver, no batch job.

Use case 01 · AML

Wire-to-address exposure trail.

expero.banking_graph · 17 node labels · 20+ edge labels

5hops · one query

pattern: bank → wire → txn → account → address
layer: Cypher inside · SUM/COUNT outside
live: add_table_monitor on wires table
bonus: Eulerian loops detect layering rings

Use case 02 · Emergency response

Closest of 1,700+ fire stations.

osm_seattle · 1.5M-edge road graph · live OSM

1.7Korigins → 1 disaster

solver: match_batch_solves
trick: inverse_solve = many-to-one Dijkstra
output: animated SVG of every candidate route

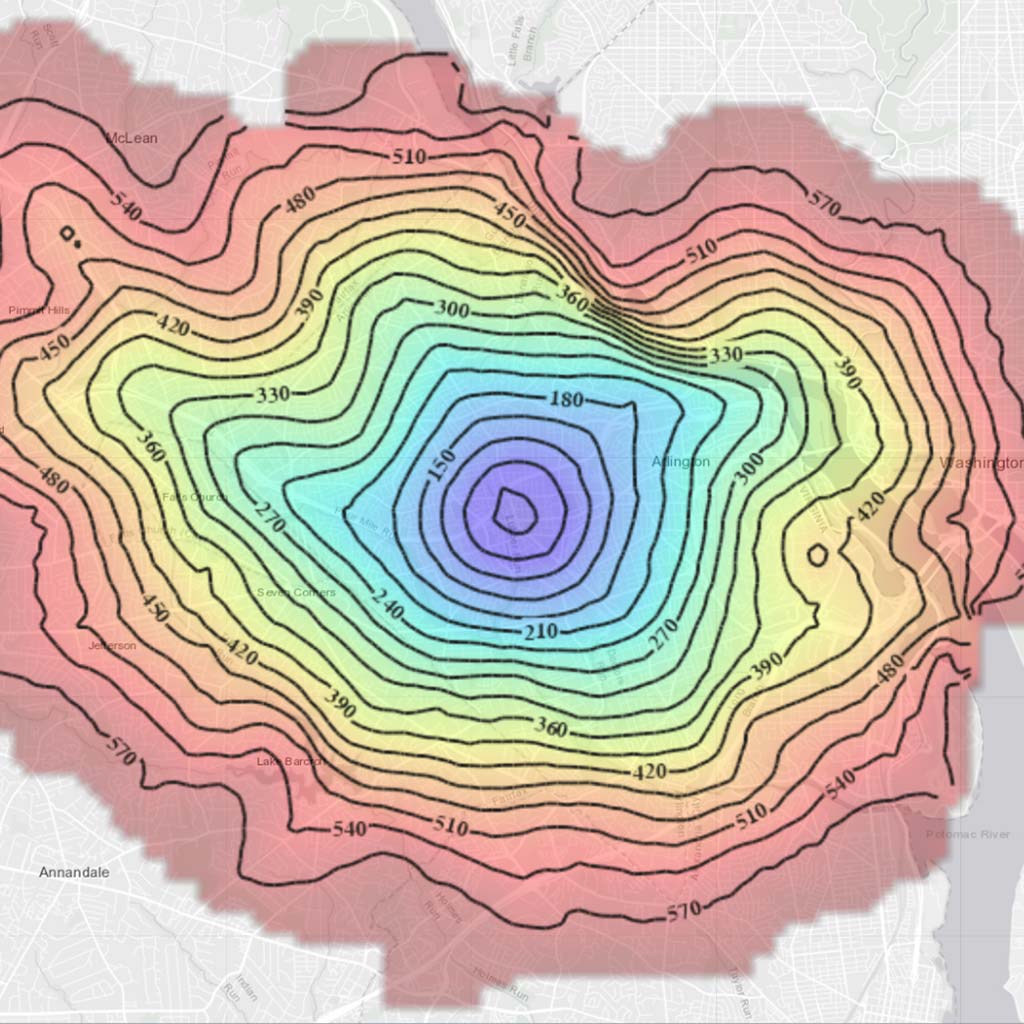

variant: match_isochrone for 2-min coverage

Use case 03 · Logistics

Two depots. Twelve trucks. Partial loads.

match_supply_demand · MILP · multi-stop dispatch

12trucks · animated SVG

tie: SUPPLY_REGION_ID = depot
partial: drop part of load mid-route
multi-modal: AIR · SEA · LAND edge labels
scale: Brazil-wide variant with Voronoi pre-clustering

What this means

These aren't graph demos with logistics bolted on. They're logistics, fraud, and emergency-response workloads — running where your data already lives, with the same SQL surface your BI tools already speak.

— Live demos available in Kinetica Workbench · session files in kineticadb/graph

The Distribution

Two distribution modes. Choose for the workload, not the hype.

MODE A · REPLICATED

Full graph on every server.

The complete topology lives on each node. Every solver runs locally, end-to-end, with no inter-server coordination. Reads scale with node count; the limit is single-node memory.

FITS WHEN — small to medium graphs · low-latency reads · high-availability requirements · solver-heavy traffic · graphs that fit in a single node's memory budget.

MODE B · PARTITIONED

Sub-graphs across servers.

Topology is split — each server holds a partition with duplicated interface nodes for cross-partition traversals. Memory scales horizontally; cross-partition solves coordinate over the network.

FITS WHEN — graphs that exceed single-node memory · partition-local solves dominate · embarrassingly parallel batch workloads · you've validated the partition algorithm balances your specific topology.

Engineering note

Single node interacting with many OLAP nodes — that's a winner. Distributed graph servers can ping-pong on partitions where the workload crosses too many boundaries. Choose the mode that fits the workload, not the demo.

— Kinetica engineering · 4.3 B-edge POC · 7 nodes ran ~8 sec on a query that took 1.8 sec on one node with the right memory budget

One engine. Every graph.
The one your analytics already speak to.

Start Free Read the paper

Frequently asked questions

How is Kinetica's graph database different from Neo4j or TigerGraph?

Dedicated graph databases store topology in a system that's separate from your relational data — which means attributes get duplicated and joins back to tables happen in application code. Kinetica keeps topology and attributes in the same engine: NODE, EDGE, WEIGHTS, and RESTRICTIONS are annotated column references on existing tables, so a graph traversal can filter on any column without copying or syncing anything.

What is the Double-Link Structure (DLS) and why does it matter for streaming graphs?

Standard graph storage uses Compressed Sparse Row (CSR), where edges are packed contiguously by source node. An insert on a busy node forces every downstream cell to shift in memory — an O(n) cost per edge. DLS uses fixed-size linked cells: each edge costs two pointer writes, an O(1) operation. Storage is always 6 × edge count regardless of degree skew, and the graph holds its shape under continuous upserts. The architecture is documented in arXiv:2201.02136.

Can graph traversals filter on columns that aren't part of the graph?

Yes — and that's the point of the hybrid architecture. Pass a SQL SELECT as the RESTRICTIONS argument to QUERY_GRAPH and the predicate is evaluated by the distributed OLAP engine for every candidate node during the walk. Failed nodes are pruned mid-traversal. The filter can reference any column on any table in the database, including columns the graph has never seen.

What graph algorithms ship with Kinetica out of the box?

Three endpoint families, all callable from standard SQL: Solve (shortest_path, multiple_routing/TSP, backhaul_routing, page_rank, probability_rank, centrality, closeness, stats_all, inverse_shortest_path), Match (match_supply_demand, map_matching, charging_stations, pickup_dropoff, loops, similarity, clusters via Louvain/RSB, pattern, batch_solves — four of which are patented), and Query (label-aware hop-based traversals with OLAP restrictions).

Which graph algorithms are patented Kinetica research, and why does that matter?

Four algorithms in the Match family ship as patented Kinetica research — each tied to a workload where generic graph databases force you out to OR-Tools, Gurobi, or a separate routing service. Map matching (map_matching) snaps noisy GPS to road-network paths via an adaptive-kernel Markov chain with range-tree closest-edge search. MSDO (match_supply_demand) runs multi-step, multi-modal MILP dispatch — air → sea → land with partial loading and capability constraints — in-database, with no external solver. Eulerian loops (loops) enumerate closed cycles with unlimited hop counts, surfacing money-movement rings that conventional path solvers return only as open trails. EV charging routing (charging_stations) returns range-aware paths across thousands of stations as a single solve. Together they replace a downstream stack of specialized routing and optimization services.

How big a graph can Kinetica hold, and how fast can it traverse it?

On a 500K-edge Seattle road network, a multi-source SHORTEST_PATH over five lon/lat pairs returns in roughly 250 ms. On a single node with 1 TB RAM + 0.5 TB ZRAM, Kinetica has held a 4.3 B-edge / 2.8 B-vertex graph and run 3-hop source-to-many queries in 1.2–1.8 seconds. Build time for that graph from cold was ~4.5 hours.

When should I use replicated vs partitioned distribution?

Use replicated when the graph fits in single-node memory — every solver runs locally with no inter-server coordination, and reads scale with node count. Use partitioned when the graph exceeds single-node memory and the workload is dominated by partition-local solves; interface nodes are duplicated across partitions to bridge cross-partition traversals. In our 4.3 B-edge POC, the same query ran 1.8 sec on one node with the right memory budget and ~8 sec on seven partitioned nodes — choose the mode that fits the workload, not the demo.
